32-bit ARM RISC microcontroller featuring 80MHz operation and 256KB FLASH memory. This surface mount BGA package offers 120 programmable I/O pins, 24 A/D converters with 12 channels, and extensive interface support including I2C, SPI, USB, UART, CAN, and I2S. Integrated peripherals include PWM, WDT, DMA, and brown-out detection. Operating voltage is 3.3V, with a temperature range of -40°C to 85°C.
Frequency80MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TM4C123GH6ZRBI technical specifications.
General
Package/Case
BGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
80MHz
Height
0.77mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, I2S
Lead Free
Lead Free
Length
9.1mm
Max Frequency
80MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of A/D Converters
24
Number of ADC Channels
12
Number of I2C Channels
6
Number of Programmable I/O
120
Number of SPI Channels
4
Number of Timers/Counters
12
Number of UART Channels
8
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
168
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123GH6ZRBI Datasheet
Download the complete datasheet for Texas Instruments TM4C123GH6ZRBI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

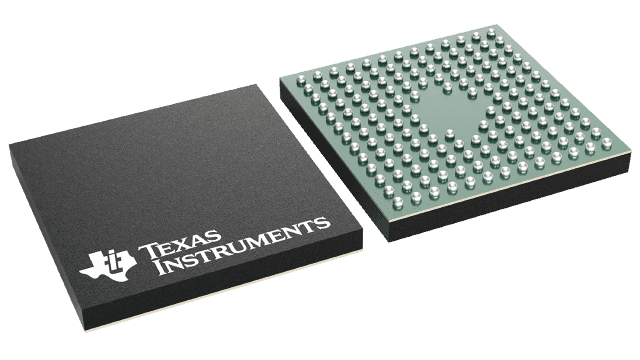

Product Images
