Texas Instruments
TM4C123GH6ZRBI7
32-bit ARM Cortex-M4F MCU, 80MHz, 256KB Flash, 32KB RAM, 120 GPIO, 24 ADC
32-bit ARM Cortex-M4F microcontroller featuring 256KB FLASH and 32KB RAM. Operates at up to 80MHz with 120 GPIO pins and 12 timers. Includes 24x 12-bit ADCs and supports I2C, SPI, USB, CAN, IrDA, and UART interfaces. VFBGA packaged, lead-free, and RoHS compliant, with a -40°C to 105°C operating temperature range.
Frequency80MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments TM4C123GH6ZRBI7 technical specifications.
General
Package/Case
VFBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of A/D Converters
24
Number of ADC Channels
24
Number of Bits
12
Number of GPIO
120
Number of I/Os
120
Number of Programmable I/O
120
Number of Timers/Counters
12
Number of UART Channels
8
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
32KB
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C123GH6ZRBI7 Datasheet
Download the complete datasheet for Texas Instruments TM4C123GH6ZRBI7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

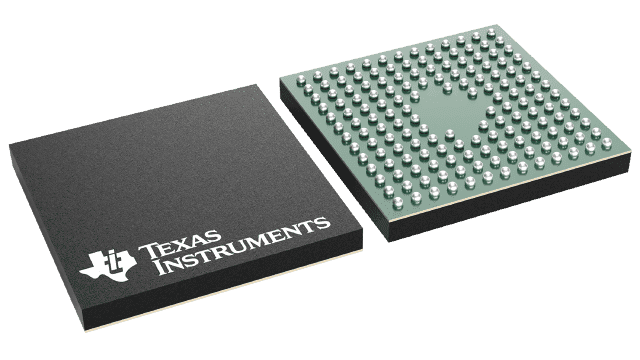

Product Images
