High-performance 32-bit ARM Cortex-M4F microcontroller featuring 1MB FLASH and 256KB RAM. Operates at up to 120MHz with a 3.3V supply voltage, supporting a wide temperature range from -40°C to 105°C. Offers extensive connectivity with I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, and EBI/EMI interfaces. Includes 20 A/D converters with 12-bit resolution, 90 GPIO pins, 8 timers/counters, and 8 UART channels. Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Packaged in a 128-TQFP tray, this lead-free and RoHS compliant component is ideal for demanding applications.
Frequency120MHz
PackageTQFP
Quick Jump:
Technical Specifications
Texas Instruments TM4C1294NCPDTI3 technical specifications.
General
Package/Case
TQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
120MHz
Interface
I2C, SPI, USB, CAN, Ethernet, IrDA, UART, USART, EBI/EMI
Lead Free
Lead Free
Max Frequency
120MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
904mW
Max Supply Voltage
3.63V
Memory Size
1MB
Memory Type
FLASH,
Min Supply Voltage
2.97V
Number of A/D Converters
20
Number of ADC Channels
20
Number of Bits
12
Number of GPIO
90
Number of I/Os
90
Number of Programmable I/O
90
Number of Timers/Counters
8
Number of UART Channels
8
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
256KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Tiva™ C
Watchdog Timer
Yes
Weight
0.01776oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TM4C1294NCPDTI3 Datasheet
Download the complete datasheet for Texas Instruments TM4C1294NCPDTI3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

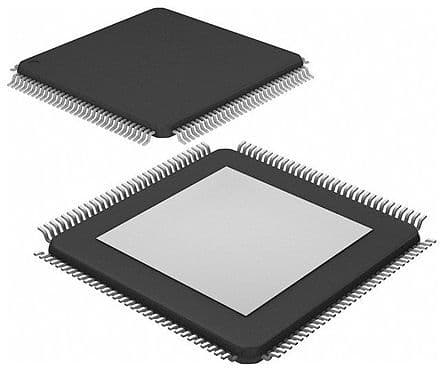

Product Images
