Digital temperature sensor with I2C and SMBus interface, featuring 12-bit resolution. Operates from a 2.7V to 5.5V supply, with a low operating supply current of 75µA. Encased in a compact SOT-23 package for surface mounting, this RoHS compliant component offers a wide operating temperature range of -55°C to 125°C.
PackageSOT-23
Current150uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP100NA/250 technical specifications.
General
Package/Case
SOT-23
Interface
I2C, SMBus, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
75uA
Output Current
4mA
Output Type
I2C, Digital
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
150uA
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP100NA/250 Datasheet
Download the complete datasheet for Texas Instruments TMP100NA/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

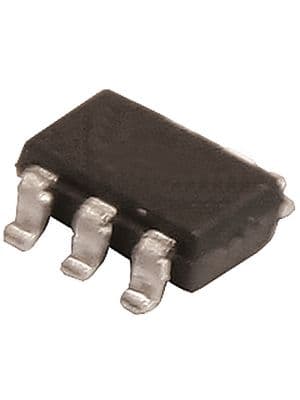

Product Images
