Digital temperature sensor with 12-bit resolution, offering I2C and SMBus serial interface compatibility. Operates across a wide temperature range from -40°C to 125°C with a supply voltage of 1.4V to 3.6V. Features low operating current of 1µA and is housed in a compact 6-pin SOT-563 surface-mount package. RoHS compliant and supplied on tape and reel.
PackageSOT-563
Current85uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP102AIDRLT technical specifications.
General
Package/Case
SOT-563
Interface
I2C, SMBus, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
1.4V
Max Supply Voltage
3.6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
1uA
Output Current
3mA
Output Type
I2C, Digital
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
85uA
Termination
SMD/SMT
Thickness
550um
Weight
9.9E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP102AIDRLT Datasheet
Download the complete datasheet for Texas Instruments TMP102AIDRLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

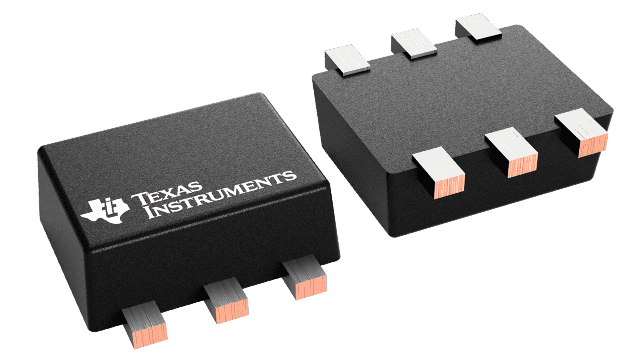

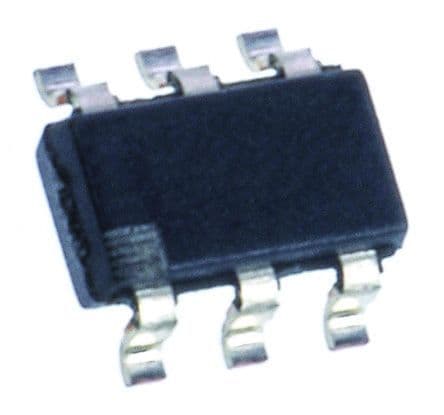

Product Images
