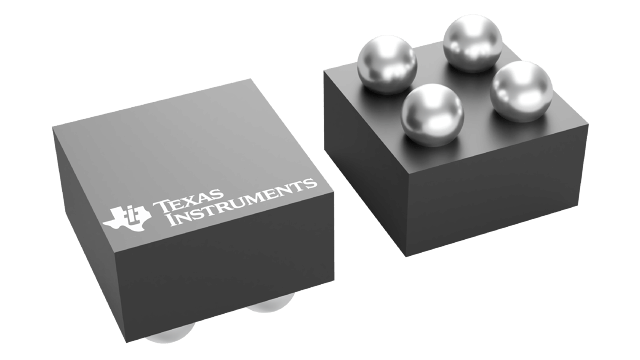

Digital temperature sensor with 8-bit resolution, offering ±2°C accuracy across a -40°C to 125°C operating range. Features I2C and SMBus compatible interface, supporting supply voltages from 1.4V to 3.6V. This surface-mount component boasts low quiescent current of 1.5µA and a compact 0.79mm x 0.79mm x 0.33mm WCSP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TMP103AYFFT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 0.33mm |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 0.79mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 1.4V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Operating Supply Current | 3uA |
| Output Current | 2mA |
| Output Type | I2C, Digital |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Supply Current | 85uA |
| Width | 0.79mm |
| RoHS | Compliant |
