Digital temperature sensor with ±0.5°C accuracy, operating from a 1.4V to 3.6V supply. Features I2C and SMBus 2-wire interface with 12-bit resolution. This surface mount component is housed in a compact 2.56mm² SOT-563 package, measuring 1.6mm x 1.2mm x 0.55mm. Ideal for applications requiring precise temperature monitoring within a -40°C to 125°C range, it offers low operating current of 10µA.
PackageSOT-563
Current85uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP112AIDRLT technical specifications.
General
Package/Case
SOT-563
Height
0.55mm
Interface
I2C, SMBus, 2-Wire
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
1.4V
Max Supply Voltage
3.6V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
10uA
Output Current
3mA
Output Type
I2C, Digital
Output Voltage
400mV
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
7uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
85uA
Termination
SMD/SMT
Thickness
550um
Weight
9.9E-05oz
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP112AIDRLT Datasheet
Download the complete datasheet for Texas Instruments TMP112AIDRLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

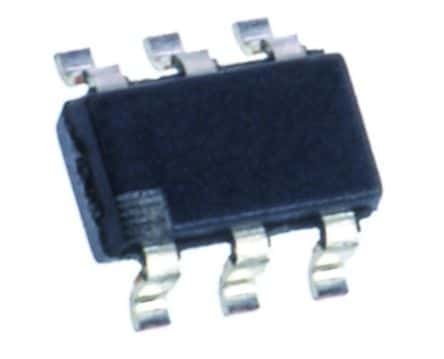

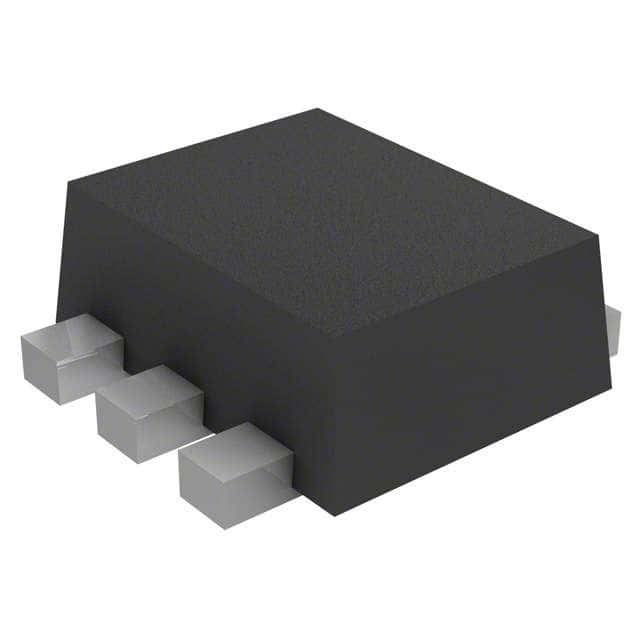

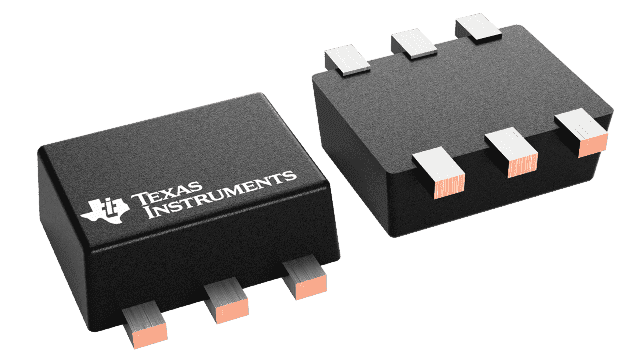

Product Images
