Digital temperature sensor with 12-bit resolution, offering ±1.5°C accuracy across a -55°C to 125°C operating range. Features an SPI interface for data communication and operates from a 2.7V to 5.5V supply voltage. This surface-mount component is housed in a 6-SOT-23 package and consumes a typical 35µA quiescent current.
PackageSOT-23
Current35uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP123AIDBVT technical specifications.
General
Package/Case
SOT-23
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
50uA
Output Current
3mA
Output Type
SPI, Digital
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
35uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
35uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP123AIDBVT Datasheet
Download the complete datasheet for Texas Instruments TMP123AIDBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

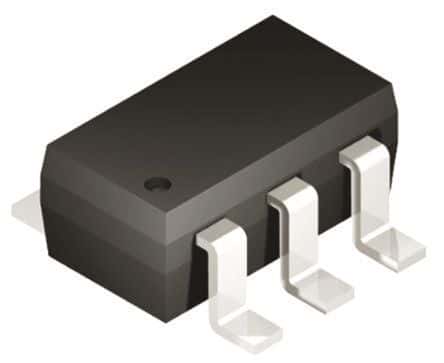

Product Images
