Digital temperature sensor with SPI interface, offering ±2°C accuracy across a -40°C to 125°C operating range. Features a 10-bit resolution and operates from a 2.7V to 5.5V supply. This surface-mount component is housed in a SOT-23 package and is RoHS compliant. Typical supply current is 36µA.
PackageSOT-23
Current36uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP125AIDBVR technical specifications.
General
Package/Case
SOT-23
Interface
SPI
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
10
Operating Supply Current
50uA
Output Type
SPI, Digital
Packaging
Tape and Reel
Quiescent Current
36uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Supply Current
36uA
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP125AIDBVR Datasheet
Download the complete datasheet for Texas Instruments TMP125AIDBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

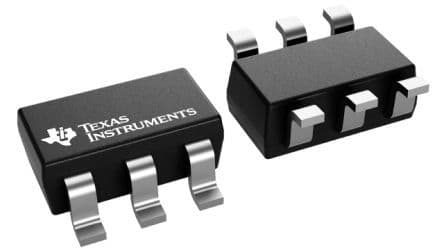

Product Images
