Texas Instruments
TMP175AIDGKT
Temperature Sensor with 27 I2C/SMBus Addresses in Industry Standard LM75 Form Factor & Pinout 8-VSSOP -40 to 125
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP175AIDGKT technical specifications.
General
Package/Case
VSSOP
Interface
I2C, SMBus, 2-Wire
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
50uA
Output Current
4mA
Output Type
I2C, Digital
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
9b
RoHS Compliant
Yes
Weight
0.000935oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMP175AIDGKT Datasheet
Download the complete datasheet for Texas Instruments TMP175AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

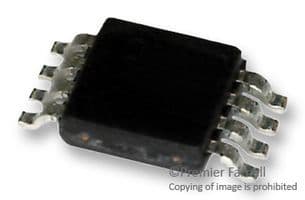

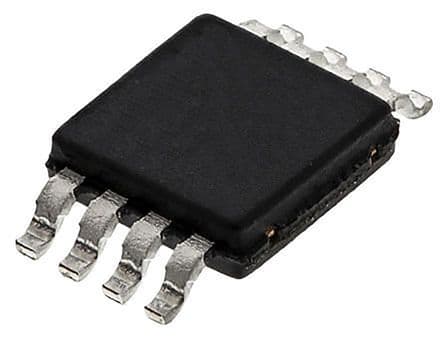

Product Images
