Texas Instruments
TMP302DDRLT
Pin-Selectable Trip Point 1.4V-Capable Family of Temperature Switches 6-SOT-5X3 -40 to 125
PackageSOT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMP302DDRLT technical specifications.
General
| Package/Case | SOT |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 1.4V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Operating Supply Current | 8uA |
| Output Current | 10mA |
| Output Type | Digital |
| Output Voltage | 3.6V |
| Packaging | Tape and Reel |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Switching Temperature | 125°C |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMP302DDRLT Datasheet
Download the complete datasheet for Texas Instruments TMP302DDRLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

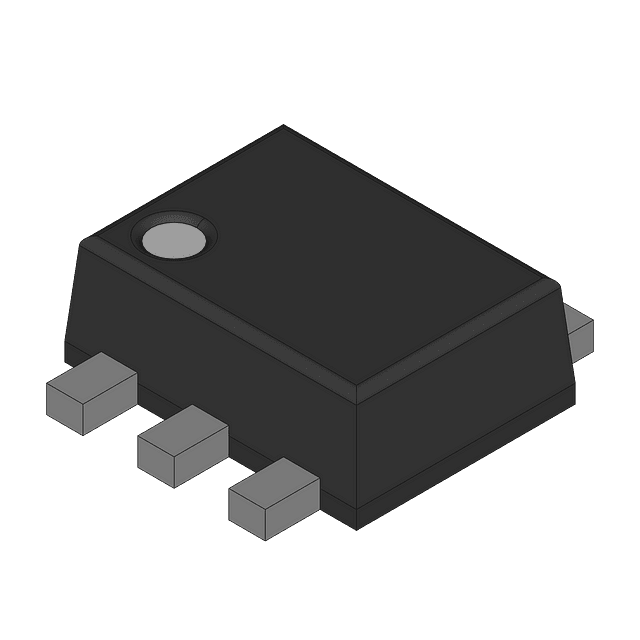

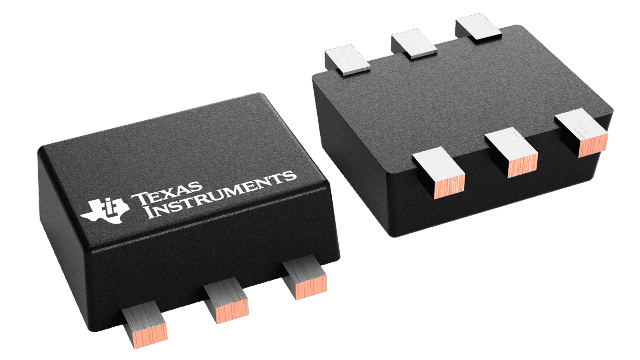

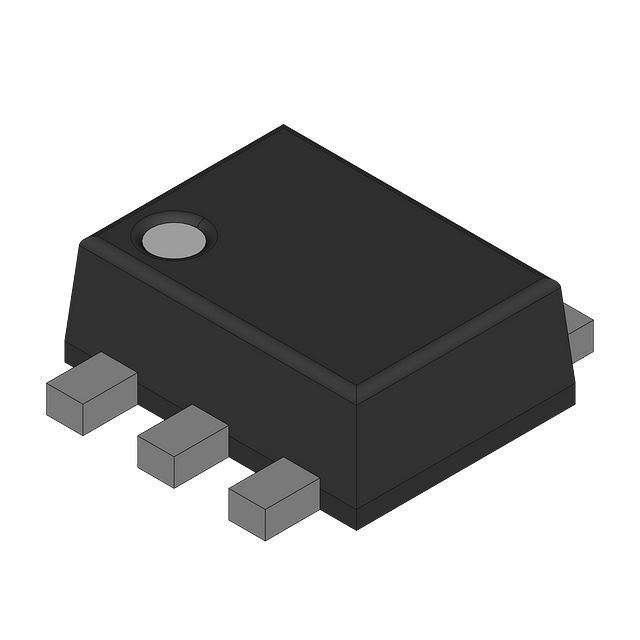

Product Images
