32-bit microcontroller (MCU) operating at 200MHz, featuring a Floating-Point Unit (FPU) and 196KB of RAM. This surface-mount device supports I2C, SPI, CAN, UART, SCI, and EBI/EMI interfaces, with 88 programmable I/Os. It includes 3 timers/counters and 3 UART channels, a watchdog timer, and operates from a 3.14V to 3.46V supply. RoHS compliant and lead-free, with an operating temperature range of -40°C to 105°C.
Frequency200MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C28341ZHHT technical specifications.
General
Package/Case
LFBGA
Data Bus Width
32b
Frequency
200MHz
Interface
I2C, SPI, CAN, UART, SCI, EBI/EMI
Lead Free
Lead Free
Max Frequency
200MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.46V
Memory Size
16KB
Memory Type
ROM,
Min Operating Temperature
-40°C
Min Supply Voltage
3.14V
Mount
Surface Mount
Number of I/Os
88
Number of Programmable I/O
88
Number of Timers/Counters
3
Number of UART Channels
3
Operating Supply Voltage
3.3V
Package Quantity
160
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
196KB
RoHS Compliant
Yes
Series
TMS320C2834x Delfino™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C28341ZHHT Datasheet
Download the complete datasheet for Texas Instruments TMS320C28341ZHHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

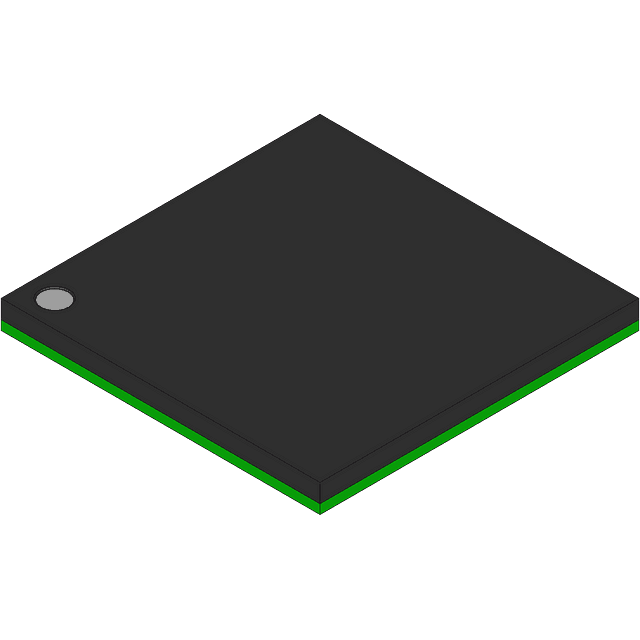

Product Images
