32-bit microcontroller (MCU) featuring a 200 MHz core speed and 250 MHz maximum frequency. This surface-mount LFBGA package offers 260 KB of RAM and 16 KB of ROM, supporting I2C, SPI, CAN, SCI, EBI/EMI, UART, and McASP interfaces. With 88 programmable I/Os, 3 timers, 3 UART channels, and a watchdog timer, this RoHS compliant component operates from 3.14V to 3.46V with a maximum operating temperature of 105°C.
Frequency250MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C28343ZHHT technical specifications.
General
Package/Case
LFBGA
Data Bus Width
32b
Frequency
250MHz
Interface
I2C, SPI, CAN, SCI, EBI/EMI, UART, McASP
Lead Free
Lead Free
Max Frequency
200MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
ROM,
Min Operating Temperature
-40°C
Max Supply Voltage
3.46V
Min Supply Voltage
3.14V
Mount
Surface Mount
Number of I/Os
88
Number of Programmable I/O
88
Number of Timers/Counters
3
Number of UART Channels
3
Operating Supply Voltage
3.3V
Package Quantity
160
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
260KB
RoHS Compliant
Yes
Series
TMS320C2834x Delfino™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C28343ZHHT Datasheet
Download the complete datasheet for Texas Instruments TMS320C28343ZHHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

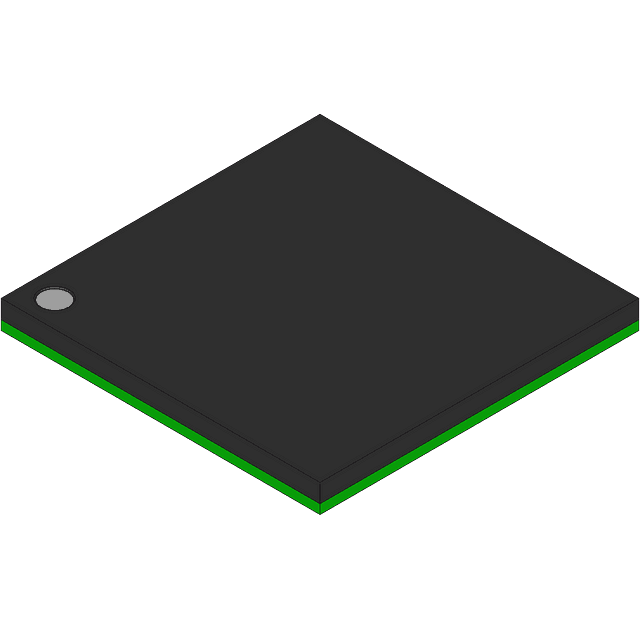

Product Images
