Frequency50MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C5534AZHHA05 technical specifications.
General
Package/Case
LFBGA
Data Bus Width
32b
Frequency
50MHz
Interface
I2C, SPI, USB, MMC, SD, UART
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
70°C
Max Supply Voltage
1.15V
Memory Size
128KB
Min Operating Temperature
-10°C
Min Supply Voltage
998mV
Mount
Surface Mount
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
3
Number of UART Channels
1
Package Quantity
160
Packaging
Tray
Radiation Hardening
No
RAM Size
256KB
RoHS Compliant
Yes
Series
TMS320C55x
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C5534AZHHA05 Datasheet
Download the complete datasheet for Texas Instruments TMS320C5534AZHHA05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

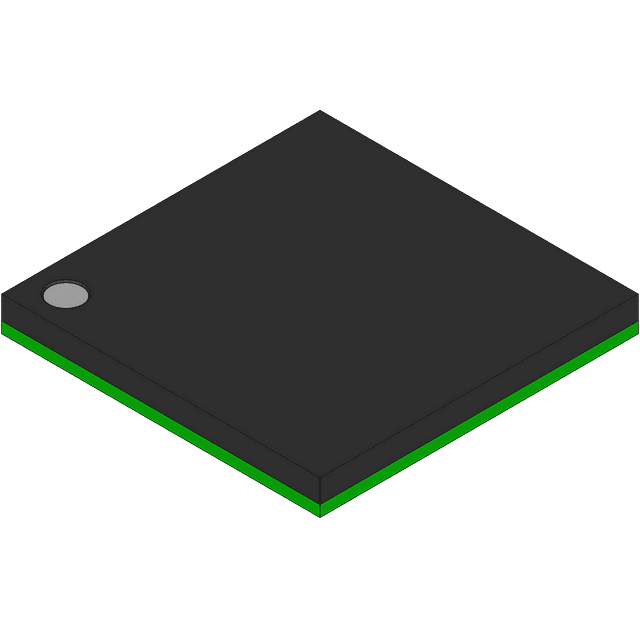

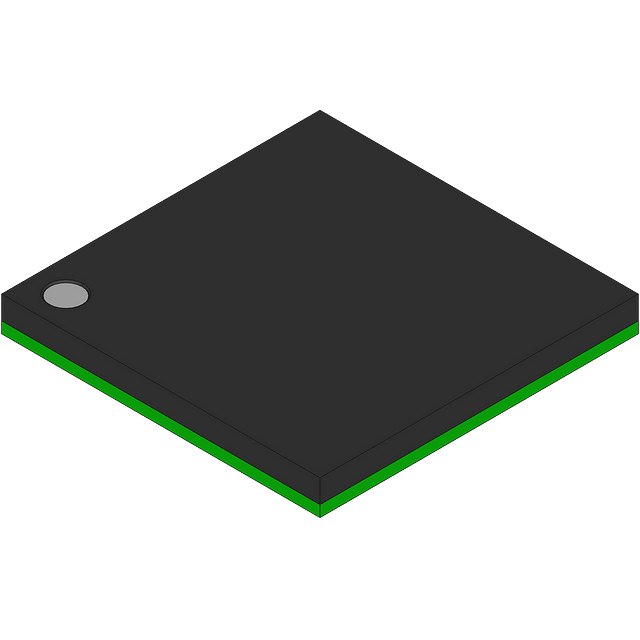

Product Images
