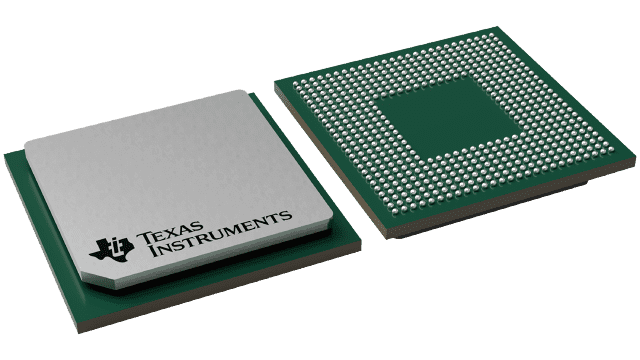

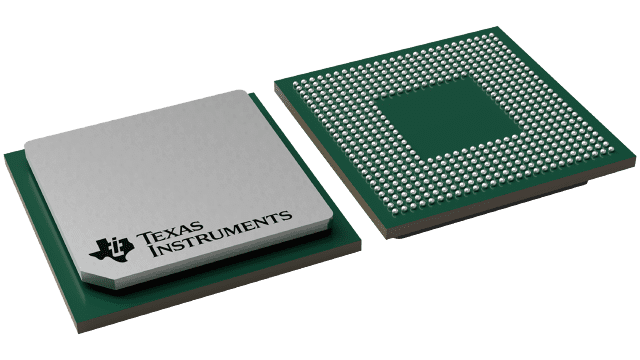

The TMS320C6416TBCLZ1 is a 1GHz digital signal processor with a 16-bit data bus width and support for PCI and SPI interfaces. It features 8MB of RAM and operates within a temperature range of 0°C to 90°C. The device is lead-free and RoHS compliant, packaged in a 32-pin FBGA with a surface mount configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TMS320C6416TBCLZ1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Core Architecture | TMS320 |
| Data Bus Width | 16b |
| Frequency | 1GHz |
| Interface | PCI, SPI |
| Lead Free | Lead Free |
| Max Frequency | 1GHz |
| Max Operating Temperature | 90°C |
| Max Supply Voltage | 3.46V |
| Memory Size | 128KB |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.16V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 3 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RAM Size | 8MB |
| RoHS Compliant | Yes |
| Series | TMS320C6414T/15T/16T |
| Supply Current | 713mA |
| RoHS | Compliant |
