Texas Instruments
TMS320C6416TBGLZ7
C64x fixed point DSP- up to 850MHz, McBSP, PCI, VCP/TCP 532-FCBGA 0 to 90
Frequency720MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6416TBGLZ7 technical specifications.
General
| Package/Case | FCBGA |
| Data Bus Width | 16b |
| Frequency | 720MHz |
| Height | 3.25mm |
| Interface | PCI |
| Lead Free | Contains Lead |
| Length | 23mm |
| Max Frequency | 720MHz |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Tray |
| RoHS Compliant | No |
| Series | TMS320C6414T/15T/16T |
| Thickness | 2.61mm |
| Weight | 0.110457oz |
| Width | 23mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments TMS320C6416TBGLZ7 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6416TBGLZ7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

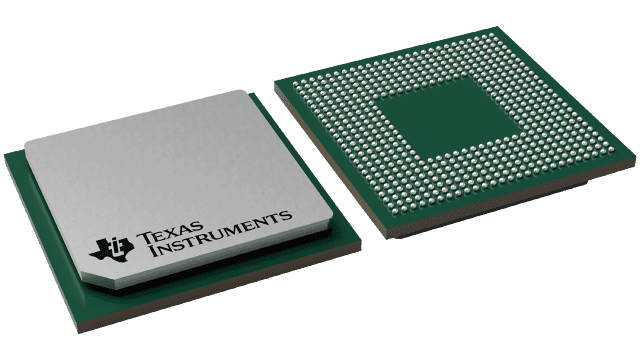

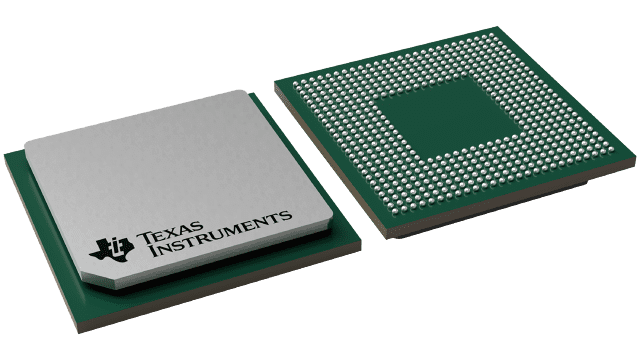

Product Images
