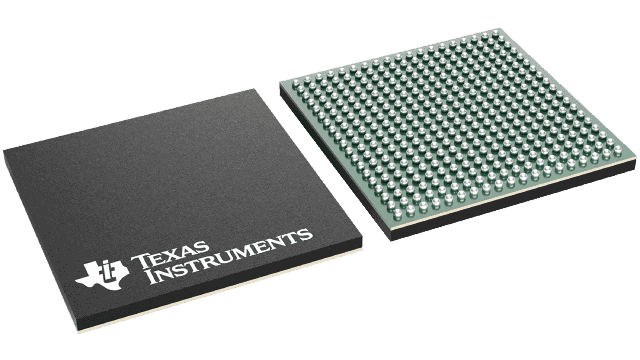

300MHz fixed-point digital signal processor featuring a TMS320 core architecture. This surface mount IC operates from 1V to 3.63V with a typical 1.2V supply, offering a maximum frequency of 600MHz. It supports NAND, FLASH, SDRAM, and DDR2 memory types and includes interfaces for I2C, Ethernet, UART, McASP, SPI, CAN, SCI, and EBI/EMI. The LFBGA package measures 16mm x 16mm with a height of 1.4mm and 900um thickness, providing 111 I/O pins. This lead-free, RoHS compliant component is designed for operation between 0°C and 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TMS320C6421ZWT6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFBGA |
| Core Architecture | TMS320 |
| Data Bus Width | 16b |
| Frequency | 300MHz |
| Height | 1.4mm |
| Interface | I2C, Ethernet, UART, McASP, SPI, CAN, SCI, EBI/EMI |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Frequency | 600MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.63V |
| Memory Type | NAND, FLASH, SDRAM, DDR2 |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of I/Os | 111 |
| Number of Programmable I/O | 111 |
| Number of UART Channels | 1 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | TMS320C642x |
| Thickness | 900um |
| Weight | 0.027845oz |
| Width | 16mm |
| RoHS | Compliant |
