Texas Instruments
TMS320C6655CZHA25
1 core fixed and floating point low power digital signal processor 625-FCBGA -40 to 100
Frequency1.25GHz
PackageFCBGA
Current5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6655CZHA25 technical specifications.
General
Package/Case
FCBGA
Data Bus Width
32b
Frequency
1.25GHz
Interface
I2C, SPI, Ethernet, PCIe, UART, EBI/EMI
Lead Free
Lead Free
Max Frequency
1.25GHz
Max Operating Temperature
100°C
Memory Size
128KB
Memory Type
ROM, RAM
Min Operating Temperature
-40°C
Max Supply Voltage
1.1V
Min Supply Voltage
900mV
Mount
Surface Mount
Number of Timers/Counters
10
Number of UART Channels
2
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RAM Size
2MB
RoHS Compliant
Yes
Series
TMS320C66x
Supply Current
5uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C6655CZHA25 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6655CZHA25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

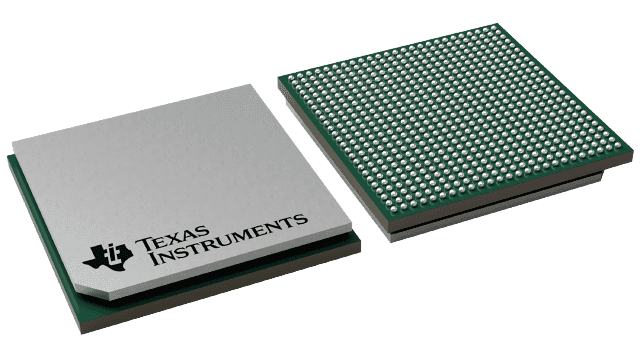

Product Images
