Texas Instruments
TMS320C6657CZH8
2 core fixed and floating point low power digital signal processor 625-FCBGA 0 to 85
Frequency850MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6657CZH8 technical specifications.
General
Package/Case
FCBGA
Data Bus Width
32b
Frequency
850MHz
Interface
I2C, SPI, Ethernet, PCIe, UART, EBI/EMI
Lead Free
Lead Free
Max Frequency
1.25GHz
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.1V
Memory Size
128KB
Min Supply Voltage
900mV
Mount
Surface Mount
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
10
Number of UART Channels
2
Package Quantity
1
Packaging
Tray
RAM Size
3MB
RoHS Compliant
Yes
Series
TMS320C66x
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C6657CZH8 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6657CZH8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

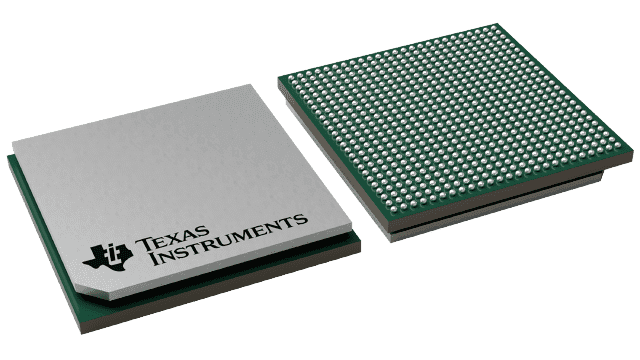

Product Images
