Dual-core 1GHz fixed and floating-point digital signal processor featuring 3MB RAM and 128KB on-chip memory. This surface mount component operates with a 32-bit data bus, supporting I2C, SPI, Ethernet, PCIe, UART, and EBI/EMI interfaces. It offers 32 programmable I/Os and 10 timers/counters, with a supply voltage range of 950mV to 1.05V. Designed for a wide operating temperature range of -40°C to 100°C, this RoHS compliant processor is packaged in a 625-FCBGA.
Frequency1GHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6657CZHA technical specifications.
General
Package/Case
FCBGA
Data Bus Width
32b
Frequency
1GHz
Interface
I2C, SPI, Ethernet, PCIe, UART, EBI/EMI
Lead Free
Lead Free
Max Frequency
1.25GHz
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.05V
Memory Size
128KB
Min Supply Voltage
950mV
Mount
Surface Mount
Number of Bits
16
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
10
Number of UART Channels
2
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RAM Size
3MB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMS320C66x
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320C6657CZHA Datasheet
Download the complete datasheet for Texas Instruments TMS320C6657CZHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

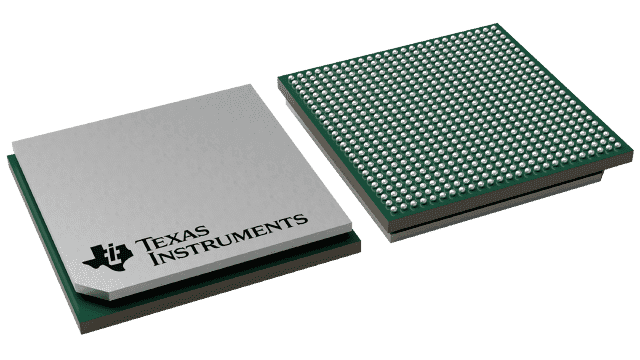

Product Images
