Dual-core 1GHz digital signal processor featuring fixed and floating-point arithmetic. Offers 3MB RAM and 128KB memory, with a 32-bit data bus. Supports I2C, SPI, Ethernet, PCIe, UART, and EBI/EMI interfaces. Operates within a -40°C to 100°C temperature range and a 0.95V to 1.05V supply voltage. Surface mountable in a 625-FCBGA package.
Frequency1GHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6657GZHA technical specifications.
General
Package/Case
FCBGA
Data Bus Width
32b
Frequency
1GHz
Interface
I2C, SPI, Ethernet, PCIe, UART, EBI/EMI
Lead Free
Contains Lead
Max Frequency
1.25GHz
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.05V
Memory Size
128KB
Min Supply Voltage
950mV
Mount
Surface Mount
Number of Bits
16
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
10
Number of UART Channels
2
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RAM Size
3MB
Reach SVHC Compliant
No
RoHS Compliant
No
Series
TMS320C66x
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments TMS320C6657GZHA Datasheet
Download the complete datasheet for Texas Instruments TMS320C6657GZHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

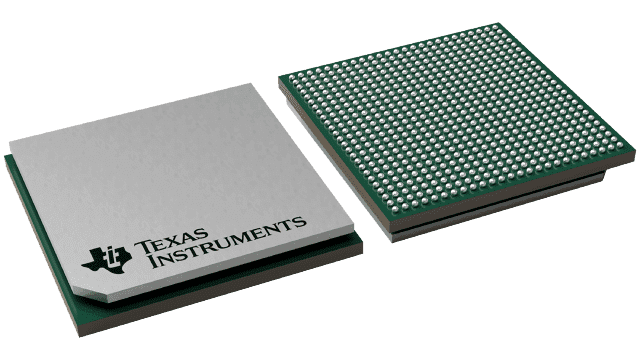

Product Images
