32-bit floating-point Digital Signal Processor (DSP) operating at 200MHz, delivering 1600 MIPS. Features a TMS320 core architecture with 256KB RAM and 8KB memory. Surface mountable in a 208-pin HLQFP package, supporting I2C and McASP interfaces. RoHS compliant with an operating supply voltage of 1.26V, ranging from 0°C to 90°C.
Frequency200MHz
PackageHLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6713BPYP200 technical specifications.
General
| Package/Case | HLQFP |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 200MHz |
| Height | 1.45mm |
| Interface | I2C, McASP |
| Lead Free | Lead Free |
| Length | 28.05mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.32V |
| Memory Size | 8KB |
| Memory Type | SDRAM, RAM, |
| Min Supply Voltage | 1.14V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Operating Supply Voltage | 1.26V |
| Package Quantity | 36 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 256KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMS320C67x |
| Weight | 0.092502oz |
| Width | 28.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320C6713BPYP200 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6713BPYP200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

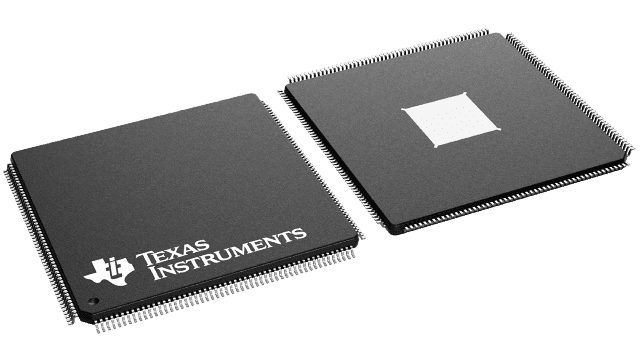

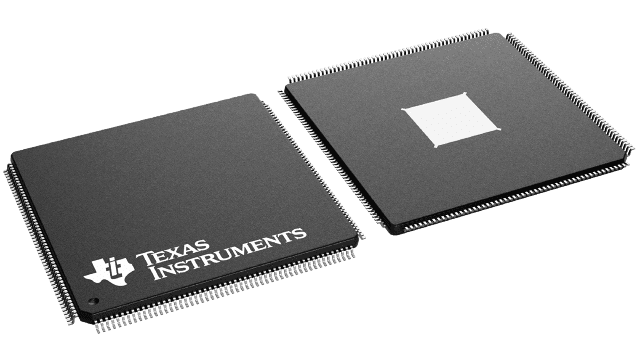

Product Images
