64-bit Digital Signal Processor (DSP) operating at 456MHz, delivering 3648MIPS. Features include I2C, SPI, USB, Ethernet, UART (3 channels), EBI/EMI, and McASP interfaces. This LFBGA package component has a 16mm x 16mm footprint with a 1.4mm height and 900um thickness. It operates within a 1.25V to 1.35V supply voltage range, with a temperature range of -40°C to 105°C, and offers 144 I/Os. RoHS compliant and lead-free.
Frequency456MHz
PackageLFBGA
Quick Jump:
Technical Specifications
Texas Instruments TMS320C6748EZWTD4 technical specifications.
General
| Package/Case | LFBGA |
| Frequency | 456MHz |
| Height | 1.4mm |
| Interface | I2C, SPI, USB, Ethernet, UART, EBI/EMI, McASP |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.35V |
| Min Supply Voltage | 1.25V |
| Number of Bits | 32 |
| Number of I/Os | 144 |
| Number of UART Channels | 3 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMS320C674x |
| Thickness | 900um |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320C6748EZWTD4 Datasheet
Download the complete datasheet for Texas Instruments TMS320C6748EZWTD4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

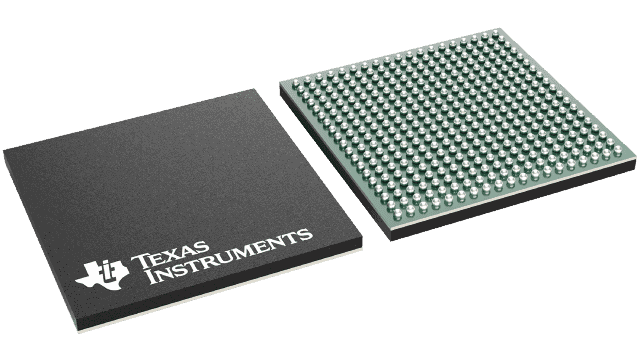

Product Images
