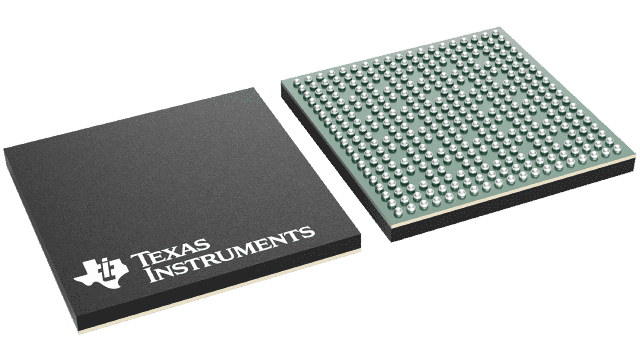

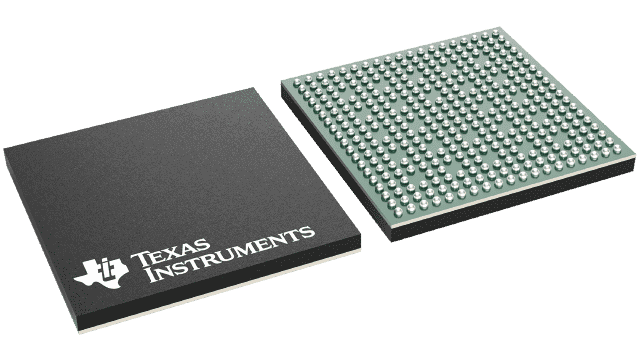

The TMS320DM355DZCE270 is a 32-bit ARM microcontroller designed for high-performance applications. Operating at a core frequency of 400MHz, this device features 32KB of RAM and supports a wide range of interfaces, including I2C, SPI, USB, UART, Ethernet, EBI/EMI, and McASP. The TMS320DM355DZCE270 is suitable for use in temperatures ranging from 0°C to 90°C and can be powered with a voltage between 1.235V and 1.365V. It is packaged in a lead-free LFBGA-337 package and meets the requirements of the RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TMS320DM355DZCE270 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 400MHz |
| Interface | I2C, SPI, USB, UART, Ethernet, EBI/EMI, McASP |
| Lead Free | Lead Free |
| Max Frequency | 270MHz |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.365V |
| Min Supply Voltage | 1.235V |
| Mount | Surface Mount |
| Number of Programmable I/O | 104 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 3 |
| Operating Supply Voltage | 1.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 32KB |
| RoHS Compliant | Yes |
| Series | TMS320DM3x, DaVinci™ |
| RoHS | Compliant |
