The TMS320DM642AZDK6 is a 600MHz digital signal processor with a 32-bit data bus width and 64-bit number of bits. It features a SDRAM memory type and operates at a maximum supply voltage of 3.46V and a maximum operating temperature of 90°C. The device is packaged in a FCBGA package and is mounted using surface mount technology. It is not RoHS compliant and contains lead, making it non-lead free.
Frequency600MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments TMS320DM642AZDK6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments TMS320DM642AZDK6 technical specifications.
General
| Package/Case | FCBGA |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 600MHz |
| Interface | I2C, PCI, McASP |
| Lead Free | Contains Lead |
| Max Frequency | 600MHz |
| Max Operating Temperature | 90°C |
| Max Supply Voltage | 3.46V |
| Memory Type | SDRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.36V |
| Mount | Surface Mount |
| Number of Bits | 64 |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Operating Supply Voltage | 1.4V |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | TMS320DM64x, DaVinci™ |
| Weight | 0.086284oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320DM642AZDK6 Datasheet
Download the complete datasheet for Texas Instruments TMS320DM642AZDK6 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

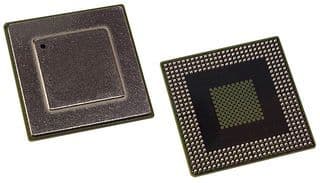

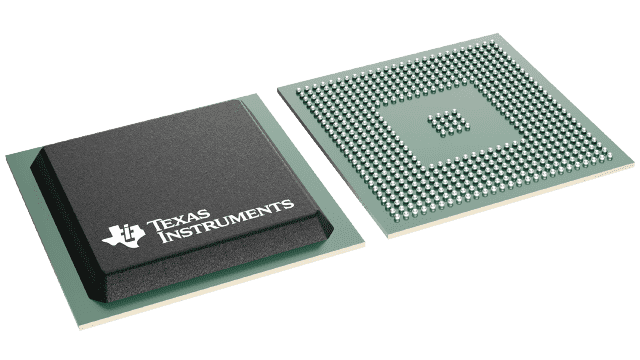

Product Images
