Video/Imaging Fixed-Point Digital Signal Processor featuring a 32-bit data bus and operating at 720MHz. This surface mount component utilizes a FCBGA package and supports SDRAM and RAM memory types. It offers I2C, PCI, and McASP interfaces, with a 1.4V operating supply voltage ranging from 1.36V to 3.46V. Operating temperature range is 0°C to 90°C.
Frequency720MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320DM642AZNZ7 technical specifications.
General
Package/Case
FCBGA
Data Bus Width
32b
Frequency
720MHz
Height
2.2mm
Interface
I2C, PCI, McASP
Lead Free
Contains Lead
Length
27mm
Max Frequency
720MHz
Max Operating Temperature
90°C
Min Operating Temperature
0°C
Max Supply Voltage
3.46V
Memory Type
SDRAM, RAM,
Min Supply Voltage
1.36V
Mount
Surface Mount
Number of Bits
64
Number of I/Os
16
Number of Programmable I/O
16
Operating Supply Voltage
1.4V
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
TMS320DM64x, DaVinci™
Weight
0.126951oz
Width
27mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320DM642AZNZ7 Datasheet
Download the complete datasheet for Texas Instruments TMS320DM642AZNZ7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

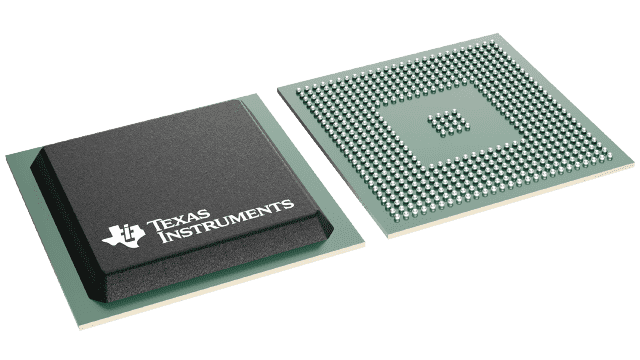

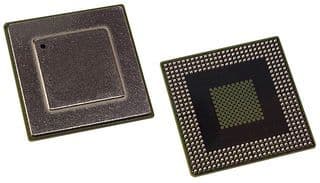

Product Images
