500MHz 32-bit fixed-point digital signal processor (DSP) with 4000 MIPS performance. Features an 8-bit data bus, 111 programmable I/Os, and 2 UART channels. Supports I2C, Ethernet, and McASP interfaces. Operates from 1V to 3.63V with a 1.2V nominal supply voltage. Memory interfaces include NAND, FLASH, SDRAM, and DDR2. Packaged in a 361-pin LFBGA for surface mounting, with an operating temperature range of 0°C to 90°C.
Frequency500MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320DM6435ZWT5 technical specifications.
General
Package/Case
LFBGA
Core Architecture
TMS320
Data Bus Width
8b
Frequency
500MHz
Interface
I2C, Ethernet, UART, McASP
Lead Free
Lead Free
Max Frequency
500MHz
Max Operating Temperature
90°C
Min Operating Temperature
0°C
Max Supply Voltage
3.63V
Memory Type
NAND, FLASH, SDRAM, DDR2
Min Supply Voltage
1V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
111
Number of Programmable I/O
111
Number of UART Channels
2
Operating Supply Voltage
1.2V
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
TMS320DM643x, DaVinci™
Weight
0.027845oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320DM6435ZWT5 Datasheet
Download the complete datasheet for Texas Instruments TMS320DM6435ZWT5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

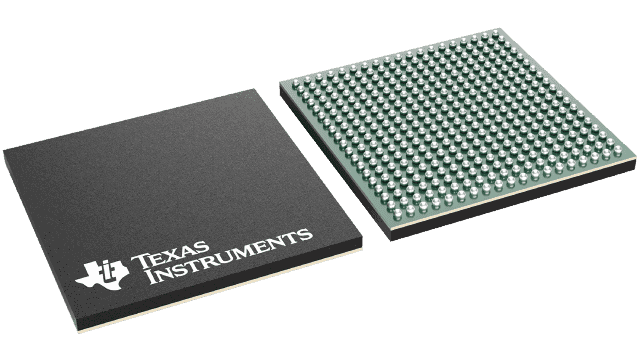

Product Images
