600MHz Digital Signal Processor (DSP) featuring a TMS320 core architecture. This surface mount LFBGA package offers 111 I/Os, 2 UART channels, and supports I2C, Ethernet, and McASP interfaces. Operates with a supply voltage range of 1V to 3.63V, with a typical 1.2V, and functions between 0°C and 90°C. Memory support includes NAND, FLASH, SDRAM, and DDR2.
Frequency600MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320DM6435ZWT6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
TMS320
Data Bus Width
8b
Frequency
600MHz
Interface
I2C, Ethernet, UART, McASP
Lead Free
Lead Free
Max Frequency
600MHz
Max Operating Temperature
90°C
Memory Type
NAND, FLASH, SDRAM, DDR2
Min Operating Temperature
0°C
Max Supply Voltage
3.63V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
111
Number of Programmable I/O
111
Number of UART Channels
2
Operating Supply Voltage
1.2V
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
TMS320DM643x, DaVinci™
Weight
0.027845oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320DM6435ZWT6 Datasheet
Download the complete datasheet for Texas Instruments TMS320DM6435ZWT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

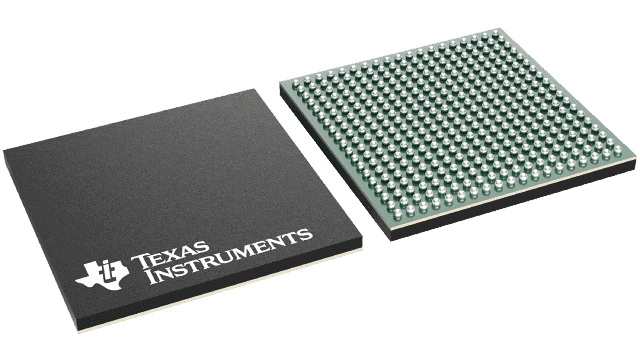

Product Images
