100MHz fixed-point digital signal processor featuring 64KB FLASH memory and 12KB RAM. This surface mount LQFP package offers 35 GPIO, 16 analog-to-digital converter channels, and multiple communication interfaces including I2C, SPI, and UART. Operating from 1.71V to 3.47V with a typical 3.3V supply, it supports internal oscillator and includes peripherals like POR, PWM, and WDT. Designed for a wide temperature range of -40°C to 125°C, this RoHS compliant component is ideal for demanding applications.
Frequency100MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F2802PZS technical specifications.
General
Package/Case
LQFP
Data Bus Width
32b
Density
64KB
Frequency
100MHz
Height
1.45mm
Interface
I2C, SPI, UART, USART, SCI
Lead Free
Lead Free
Length
14.2mm
Max Frequency
100MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.47V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of A/D Converters
16
Number of ADC Channels
16
Number of GPIO
35
Number of I/Os
35
Number of I2C Channels
1
Number of SPI Channels
4
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
12KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, C2000™ C28x Fixed-Point
Weight
0.02242oz
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F2802PZS Datasheet
Download the complete datasheet for Texas Instruments TMS320F2802PZS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

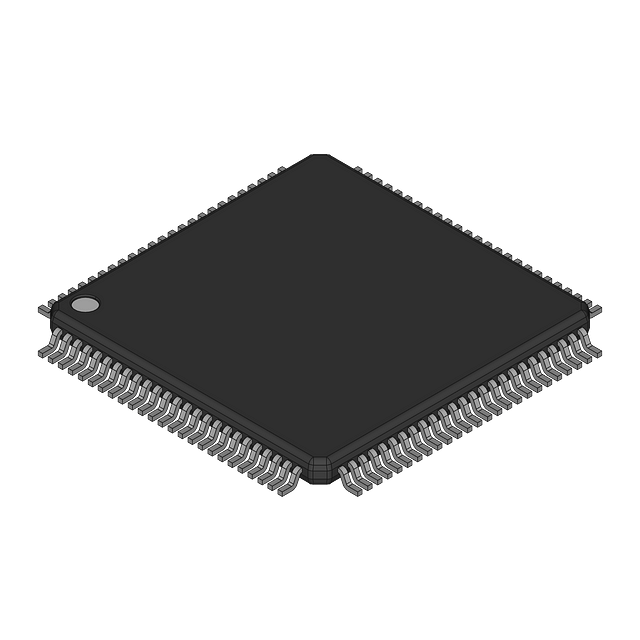

Product Images
