Texas Instruments
TMS320F28052MPNQ
C2000™ 32-bit MCU with 60 MHz, 64 KB Flash, InstaSPIN-MOTION, PGAs 80-LQFP -40 to 125
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28052MPNQ technical specifications.
General
| Package/Case | LQFP |
| Density | 65536B |
| Interface | I2C, SPI, UART, USART, SCI |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 42 |
| Number of UART Channels | 3 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 16384B |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, C2000™ C28x Piccolo™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320F28052MPNQ Datasheet
Download the complete datasheet for Texas Instruments TMS320F28052MPNQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

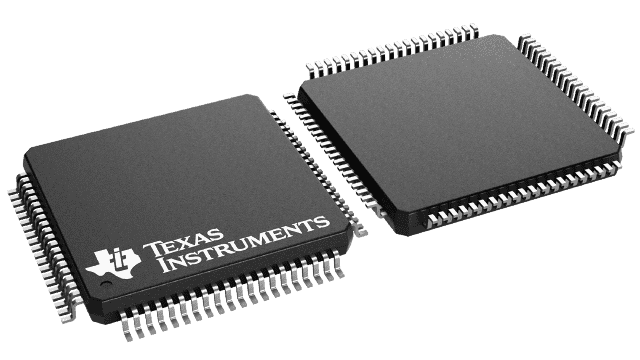

Product Images
