32-bit microcontroller featuring a 90 MHz C28x Piccolo™ core with Floating-Point Unit (FPU) and Voltage Control Unit (VCU). Includes a Control Law Accelerator (CLA) and 256 KB of FLASH memory. Offers 40 programmable I/O pins and supports interfaces such as I2C, SPI, USB, UART, USART, SCI, and CAN. Operates from a 2.97V to 3.63V supply voltage and is packaged in an 80-LQFP, suitable for -40°C to 105°C operating temperatures. Peripherals include PWM, DMA, and WDT.
Frequency90MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28069UPNT technical specifications.
General
Package/Case
LQFP
Data Bus Width
32b
Frequency
90MHz
Interface
I2C, SPI, USB, UART, USART, SCI, CAN
Lead Free
Lead Free
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Number of GPIO
40
Number of I/Os
40
Number of Programmable I/O
40
Number of Timers/Counters
3
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
50KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C2000™ C28x Piccolo™
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F28069UPNT Datasheet
Download the complete datasheet for Texas Instruments TMS320F28069UPNT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

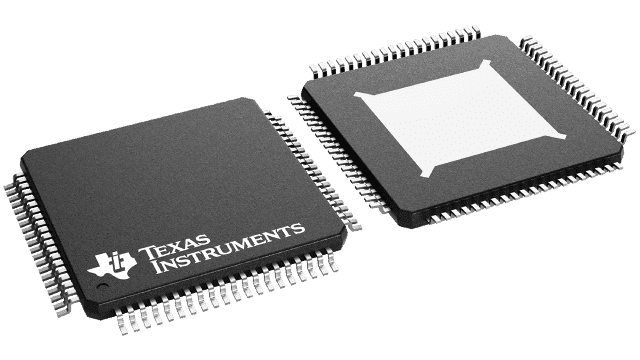

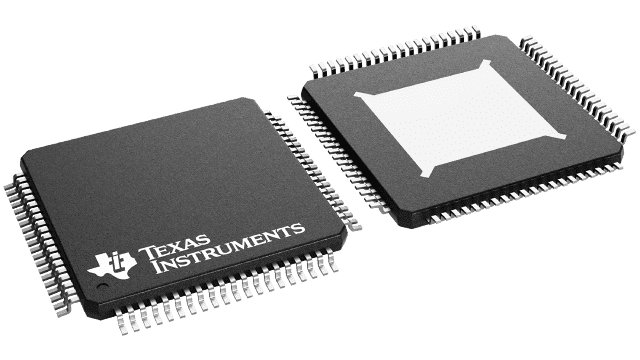

Product Images
