32-bit floating-point Digital Signal Processor (DSP) operating at 100MHz. Features 128KB FLASH memory and 36KB RAM. Offers 16 A/D converters and 35 GPIO pins, with interfaces including I2C, SPI, CAN, UART, USART, and SCI. Packaged in a 100-pin LQFP for surface mounting, operating from 1.71V to 1.89V, with a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
Frequency100MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320F2808PZS technical specifications.
General
Package/Case
LQFP
Data Bus Width
32b
Density
128KB
Frequency
100MHz
Height
1.4mm
Interface
I2C, SPI, CAN, UART, USART, SCI
Lead Free
Lead Free
Length
14mm
Max Frequency
100MHz
Max Operating Temperature
125°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
1.89V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of A/D Converters
16
Number of GPIO
35
Number of I/Os
35
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
36KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
C2000™ C28x Fixed-Point
Termination
SMD/SMT
Weight
0.02242oz
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F2808PZS Datasheet
Download the complete datasheet for Texas Instruments TMS320F2808PZS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

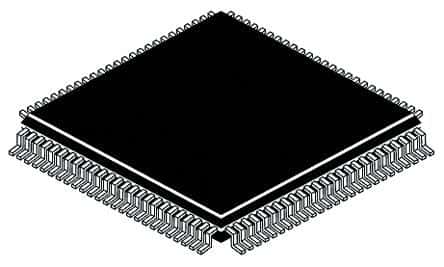

Product Images
