32-bit Digital Signal Processor (DSP) featuring a C2000 core architecture operating at 150MHz. Integrated 256KB FLASH memory and 68KB RAM, with 16 analog inputs and 88 programmable I/Os. Supports I2C, SPI, CAN, UART, SCI, USART, and EBI/EMI interfaces. Operates within a temperature range of -40°C to 85°C and offers a supply voltage from 1.805V to 3.465V. Includes peripherals such as POR, PWM, WDT, and DMA.
Frequency150MHz
PackageLFBGA
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments TMS320F28334ZHHA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments TMS320F28334ZHHA technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | C2000 |
| Data Bus Width | 32b |
| Frequency | 150MHz |
| Interface | I2C, SPI, CAN, UART, SCI, USART, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 150MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.465V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.805V |
| Number of A/D Converters | 16 |
| Number of Channels | 16 |
| Number of GPIO | 88 |
| Number of I/Os | 88 |
| Number of Programmable I/O | 88 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 3 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 68KB |
| RoHS Compliant | Yes |
| Series | C2000™ C28x Delfino™ |
| Watchdog Timer | Yes |
| Weight | 0.011916oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320F28334ZHHA Datasheet
Download the complete datasheet for Texas Instruments TMS320F28334ZHHA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

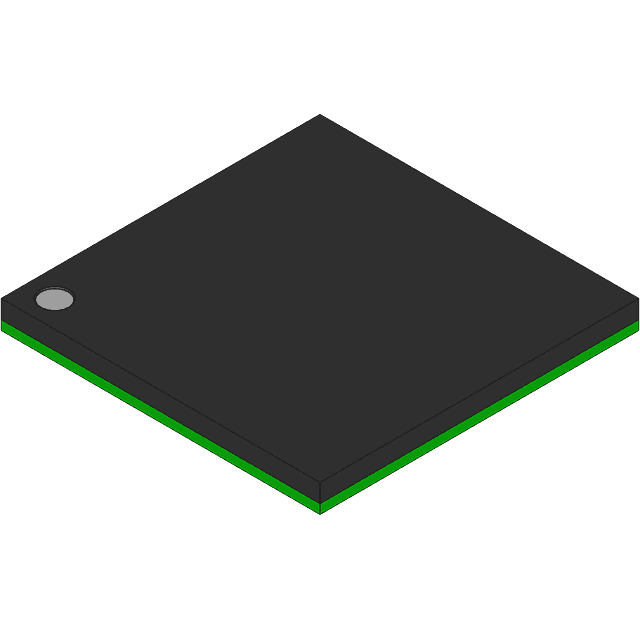

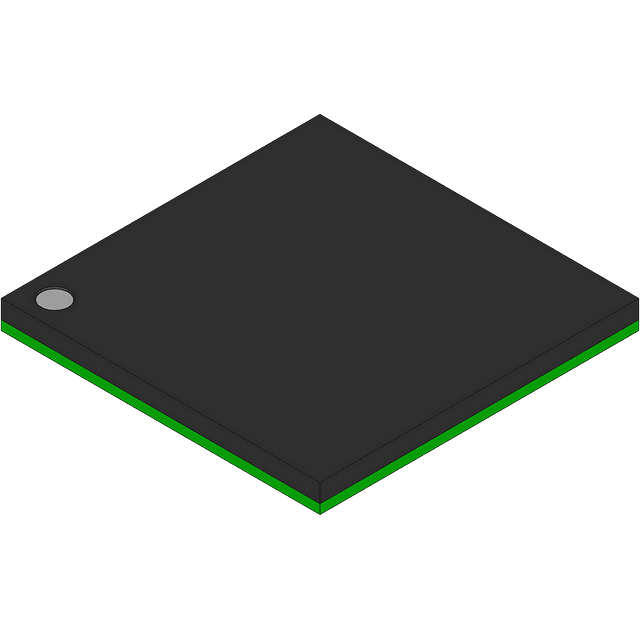

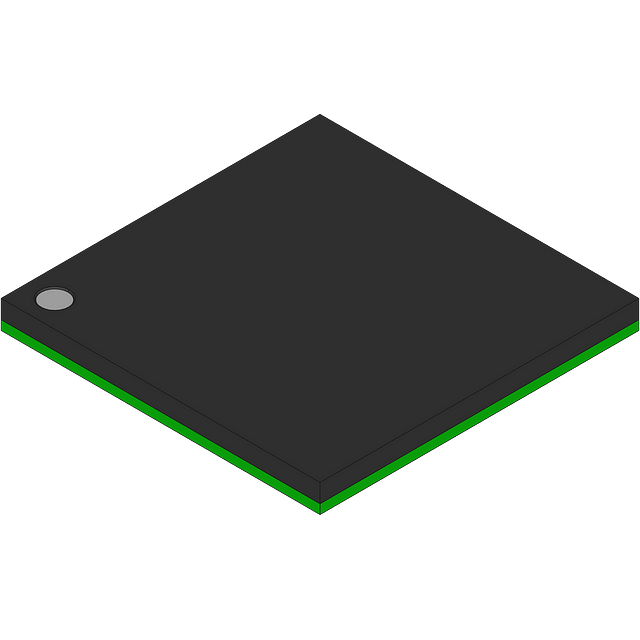

Product Images
