32-bit Digital Signal Processor (DSP) featuring 150 MIPS performance and a Floating-Point Unit (FPU). Offers 512KB of FLASH memory and 68KB of RAM. Integrated 12-bit Analog-to-Digital Converters (ADCs) with 16 channels. Supports multiple interfaces including I2C, SPI, UART, SCI, CAN, and EMIF. Operates within a temperature range of -40°C to 125°C and is housed in a 176-HLQFP package.
Frequency150MHz
PackageHLQFP
Quick Jump:
Technical Specifications
Texas Instruments TMS320F28335PTPQ technical specifications.
General
Package/Case
HLQFP
Data Bus Width
32b
Density
512KB
Frequency
150MHz
Interface
I2C, SPI, UART, USART, SCI, EBI/EMI, Serial, CAN
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.995V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
1.805V
Number of A/D Converters
16
Number of Channels
16
Number of GPIO
88
Number of I/Os
88
Number of Programmable I/O
88
Number of Timers/Counters
3
Number of UART Channels
3
Oscillator Type
Internal
Package Quantity
40
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
68KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, C2000™ C28x Delfino™
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320F28335PTPQ Datasheet
Download the complete datasheet for Texas Instruments TMS320F28335PTPQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

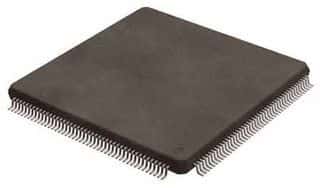

Product Images
