32-bit fixed-point digital signal processor operating at 300MHz, delivering 600 MIPS performance. Features 32KB RAM, SDRAM, EPROM, and ROM memory support. Includes I2C and UART interfaces, with 8 programmable I/O pins. Packaged in a 176-pin LQFP for surface mounting, with an operating voltage range of 1.2V to 3.6V and an operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency300MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320VC5501PGF300 technical specifications.
General
Package/Case
LQFP
Core Architecture
TMS320
Data Bus Width
32b
Frequency
300MHz
Height
1.4mm
Interface
I2C, UART
Lead Free
Lead Free
Length
24mm
Max Frequency
300MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
SDRAM, EPROM, ROM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
8
Number of Programmable I/O
8
Number of UART Channels
1
Operating Supply Voltage
1.26V
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMS320C55x
Weight
0.066886oz
Width
24mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TMS320VC5501PGF300 Datasheet
Download the complete datasheet for Texas Instruments TMS320VC5501PGF300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

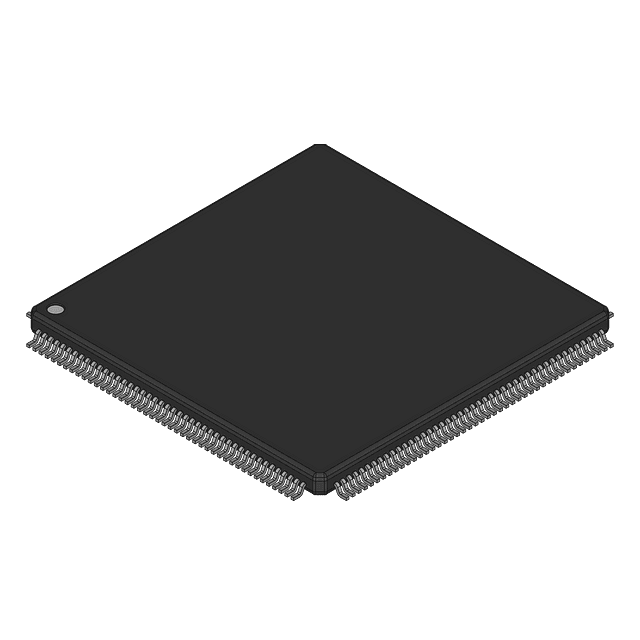

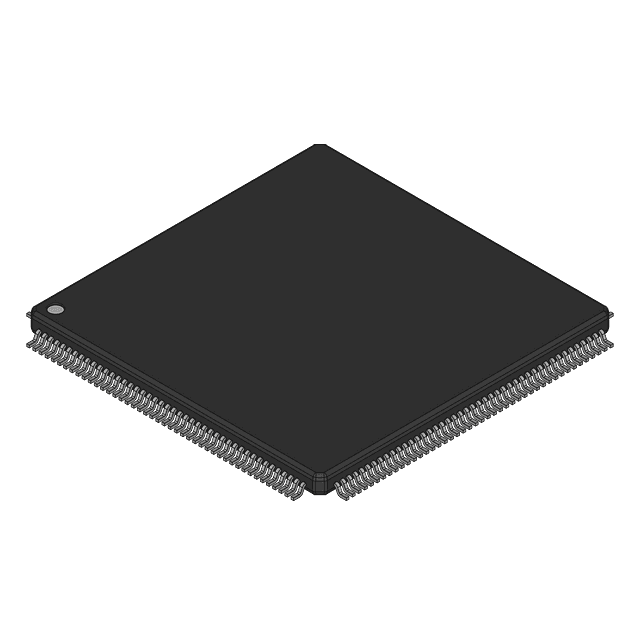

Product Images
