32-bit fixed-point digital signal processor operating at 600MHz, delivering 4800 MIPS. Features 128KB SDRAM, a PCI interface, and 16 programmable I/Os. Packaged in a 532-pin FCBGA for surface mounting, with an operating temperature range of -40°C to 105°C. Supply voltage ranges from 1.36V to 3.46V.
Frequency600MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS32C6416EGLZA6E3 technical specifications.
General
| Package/Case | FCBGA |
| Data Bus Width | 32b |
| Frequency | 600MHz |
| Interface | PCI |
| Lead Free | Contains Lead |
| Max Frequency | 600MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.46V |
| Memory Size | 128KB |
| Memory Type | SDRAM |
| Min Supply Voltage | 1.36V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Operating Supply Voltage | 1.4V |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | TMS320C6414/15/16 |
| Weight | 0.110457oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS32C6416EGLZA6E3 Datasheet
Download the complete datasheet for Texas Instruments TMS32C6416EGLZA6E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

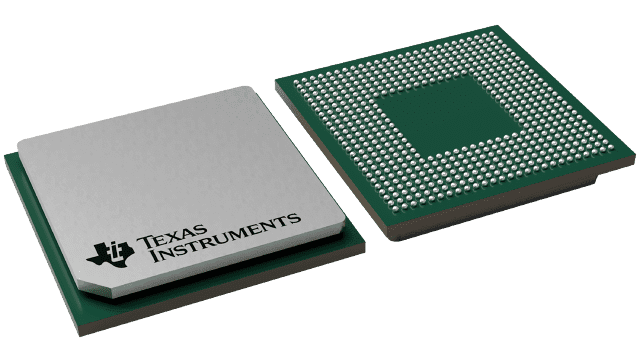

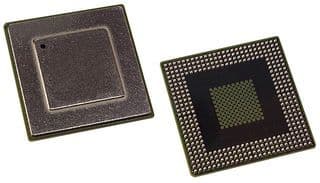

Product Images
