Texas Instruments
TPA2012D2RTJTG4
2.1-W Stereo Class-D Audio Amplifier with Gain Select (TPA2012) 20-QFN -40 to 85
PackageQFN
Current6mA
Power2.1W
Quick Jump:
Technical Specifications
Texas Instruments TPA2012D2RTJTG4 technical specifications.
General
Package/Case
QFN
Lead Free
Lead Free
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.1W
Max Power Dissipation
5.2W
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
2
Output Power
2.1W
Package Quantity
250
Packaging
Tape and Reel
Power Dissipation
5.2W
Power Supply Rejection Ratio (PSRR)
-75dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPA2012D2
Supply Current
6mA
Supply Type
Single
Weight
0.001344oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA2012D2RTJTG4 Datasheet
Download the complete datasheet for Texas Instruments TPA2012D2RTJTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

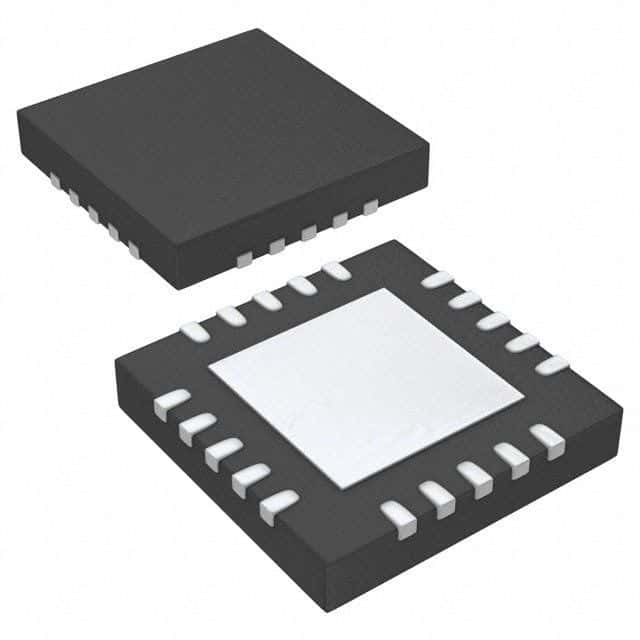

Product Images
