Mono Class-D audio amplifier with integrated boost converter, delivering 2.7W output power into a 4Ω load. Features a 20dB voltage gain and operates from a dual supply voltage range of 1.8V to 5.5V. Maximum power dissipation is 1.5W. This surface mount component is supplied in tape and reel packaging, with a minimum operating temperature of -40°C and a maximum of 85°C.
Current4.3mA
MountingSurface Mount
Power2.7W
Quick Jump:
Technical Specifications
Texas Instruments TPA2013D1YZHR technical specifications.
General
Dual Supply Voltage
5V
Gain
20dB
Lead Free
Lead Free
Load Impedance
4R
Max Dual Supply Voltage
5.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.7W
Max Power Dissipation
1.5W
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Output Power
2.7W
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1.5W
Quiescent Current
16.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPA2013D1
Supply Current
4.3mA
Supply Type
Dual
Termination
SMD/SMT
Voltage Gain
20dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA2013D1YZHR Datasheet
Download the complete datasheet for Texas Instruments TPA2013D1YZHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

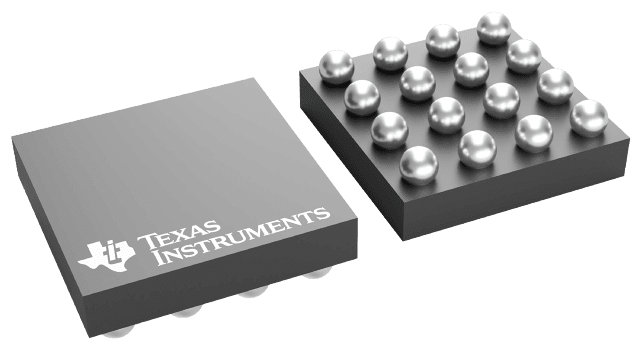

Product Images
