Texas Instruments
TPA2017D2RTJR
2.8-W, stereo, analog input Class-D audio amplifier with DRC, AGC, limiter & noise gate 20-QFN -40 to 85
PackageQFN
Current5.5mA
Power2.8W
Quick Jump:
Technical Specifications
Texas Instruments TPA2017D2RTJR technical specifications.
General
| Package/Case | QFN |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.8W |
| Max Power Dissipation | 5.2W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Operating Supply Voltage | 3.6V |
| Output Power | 2.8W |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 5.2W |
| Power Supply Rejection Ratio (PSRR) | -80dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SmartGain™ |
| Supply Current | 5.5mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA2017D2RTJR Datasheet
Download the complete datasheet for Texas Instruments TPA2017D2RTJR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

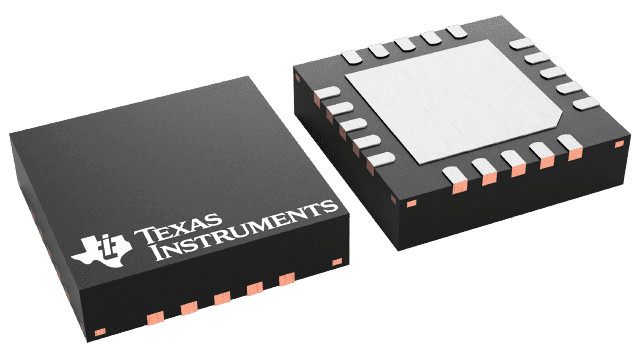

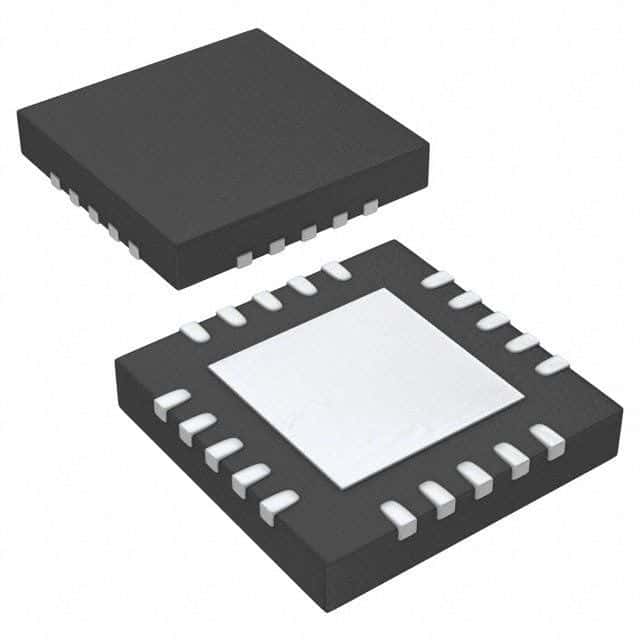

Product Images
