Mono Class-D audio amplifier delivering 3W output power into a 4Ω load. Features SmartGain™ technology with I²C control for automatic gain control (AGC) and dynamic range compression (DRC). Operates from a 2.5V to 5.5V supply voltage, with a typical operating voltage of 3.6V. Packaged in a 9-DSBGA, this lead-free component offers a wide operating temperature range of -40°C to 85°C.
PackageBGA
Current3.5mA
Power3W
Quick Jump:
Technical Specifications
Texas Instruments TPA2018D1YZFT technical specifications.
General
Package/Case
BGA
Features
I²C
Lead Free
Lead Free
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
3W
Max Power Dissipation
1.19W
Max Supply Current
3.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Operating Supply Voltage
3.6V
Output Power
3W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
1.19W
Power Supply Rejection Ratio (PSRR)
-80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SmartGain™
Supply Current
3.5mA
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA2018D1YZFT Datasheet
Download the complete datasheet for Texas Instruments TPA2018D1YZFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

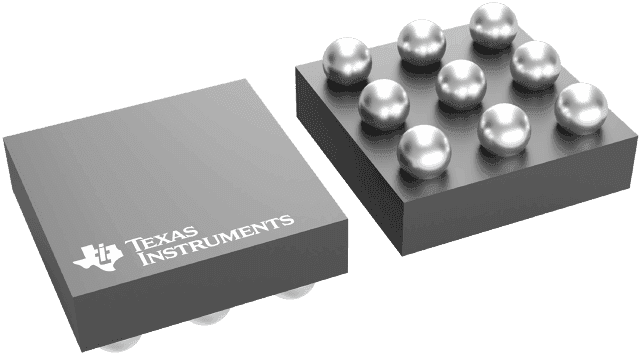

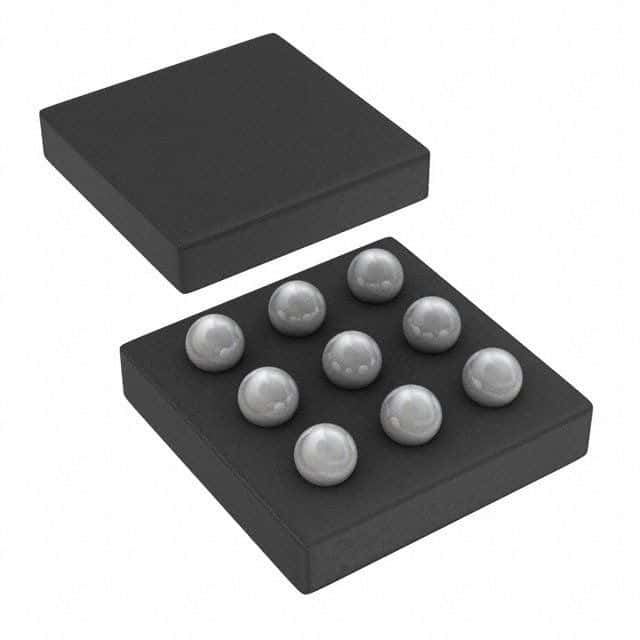

Product Images
