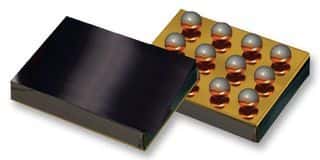

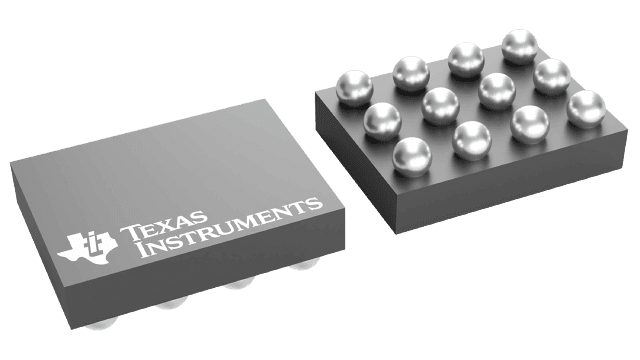

Mono analog input Class-D speaker amplifier featuring integrated Class-G boost converter. Delivers 1.7W output power into an 8Ω load, with a maximum output of 2.28W. Operates from a 2.5V to 5.2V supply voltage, consuming 2mA quiescent current. Offers 20dB voltage gain and a 71dB common mode rejection ratio. Packaged in a 12-DSBGA surface mount configuration, measuring 1.53mm x 1.982mm x 0.275mm, suitable for tape and reel packaging. RoHS compliant with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPA2025D1YZGT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Common Mode Rejection Ratio | 71dB |
| Gain | 20dB |
| Height | 0.275mm |
| Lead Free | Lead Free |
| Length | 1.53mm |
| Load Impedance | 8R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.28W |
| Max Supply Voltage | 5.2V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Power | 1.7W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 62.5dB |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.8A |
| Voltage Gain | 20dB |
| Width | 1.982mm |
| RoHS | Compliant |
