Mono Class-D Audio Amplifier, 2.75W output power into a 4Ω load. Features 6dB fixed voltage gain and a wide operating supply voltage range of 2.5V to 5.5V, with a typical 5V operating point. Offers 480mW power dissipation and a low quiescent current of 3mA. Housed in a BGA package, this component operates from -40°C to 85°C and is RoHS compliant.
PackageBGA
Current3mA
Power2.75W
Quick Jump:
Technical Specifications
Texas Instruments TPA2032D1YZFR technical specifications.
General
Package/Case
BGA
Gain
6dB
Lead Free
Contains Lead
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.75W
Max Power Dissipation
480mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Operating Supply Voltage
5V
Output Power
2.75W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
480mW
Power Supply Rejection Ratio (PSRR)
-75dB
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NanoFree™
Supply Current
3mA
Supply Type
Single
Voltage Gain
6dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA2032D1YZFR Datasheet
Download the complete datasheet for Texas Instruments TPA2032D1YZFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

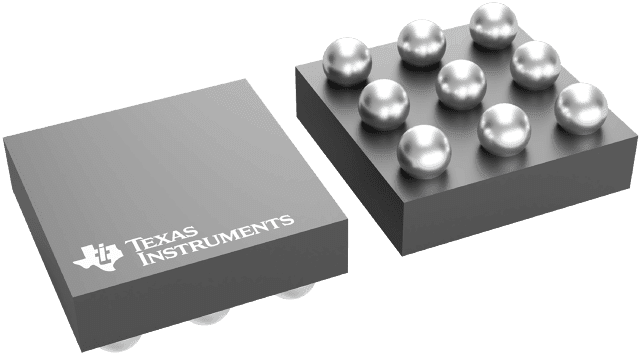

Product Images
