Texas Instruments
TPA2051D3YFFR
2.9-W 3-Input Audio Subsystem with SmartGain™ Mono Class-D and DirectPath Headphone Amplifi 25-DSBGA -40 to 85
Current8.5mA
MountingSurface Mount
Power2.9W
Quick Jump:
Technical Specifications
Texas Instruments TPA2051D3YFFR technical specifications.
General
Dual Supply Voltage
5V
Features
I²C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.9W
Max Power Dissipation
845mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Output Power
2.9W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
845mW
Power Supply Rejection Ratio (PSRR)
60dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
DirectPath™, SpeakerGuard™
Supply Current
8.5mA
Supply Type
Triple
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA2051D3YFFR Datasheet
Download the complete datasheet for Texas Instruments TPA2051D3YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

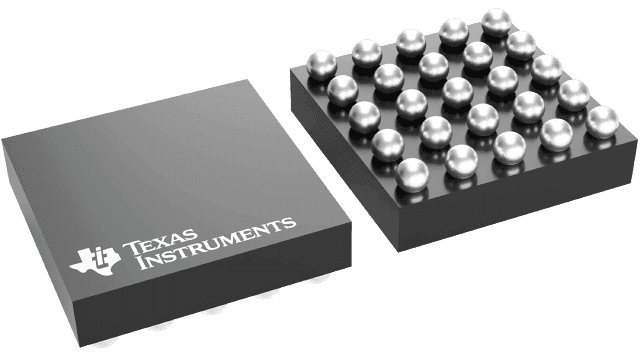

Product Images
