Texas Instruments
TPA3101D2RGZTG4
10W, 2 CHANNEL, AUDIO AMPLIFIER, PQCC48, 7 X 7 MM, GREEN, PLASTIC, VQFN-48
PackageVQFN
Current22mA
Power10W
Quick Jump:
Technical Specifications
Texas Instruments TPA3101D2RGZTG4 technical specifications.
General
Package/Case
VQFN
Gain
36dB
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
10W
Max Power Dissipation
4.39W
Max Supply Voltage
26V
Min Supply Voltage
10V
Operating Supply Voltage
24V
Output Power
10W
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPA3101D2
Supply Current
22mA
Supply Type
Single
Voltage Gain
36dB
Weight
0.004868oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3101D2RGZTG4 Datasheet
Download the complete datasheet for Texas Instruments TPA3101D2RGZTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

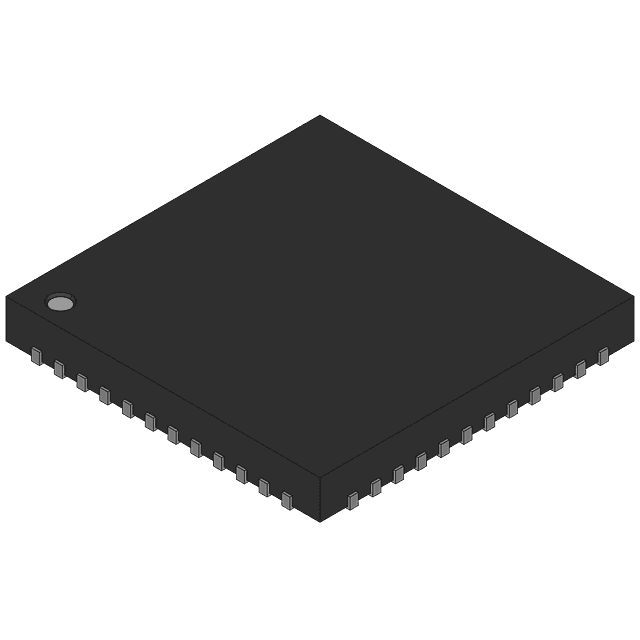

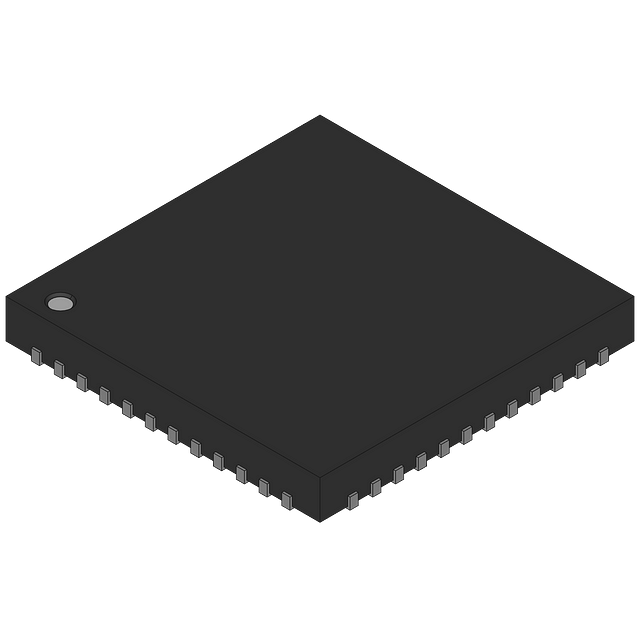

Product Images
