Texas Instruments
TPA3106D1VFP
40-W mono, 10- to 26-V supply, analog input Class-D audio amplifier 32-HLQFP -40 to 85
PackageHLQFP
Current10mA
Power40W
Quick Jump:
Technical Specifications
Texas Instruments TPA3106D1VFP technical specifications.
General
Package/Case
HLQFP
Gain
36dB
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
40W
Max Power Dissipation
3.57W
Max Supply Voltage
26V
Min Supply Voltage
10V
Operating Supply Voltage
24V
Output Power
40W
Package Quantity
250
Packaging
Tray
Power Dissipation
3.57W
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
10mA
Supply Type
Single
Voltage Gain
36dB
Weight
0.0063oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3106D1VFP Datasheet
Download the complete datasheet for Texas Instruments TPA3106D1VFP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

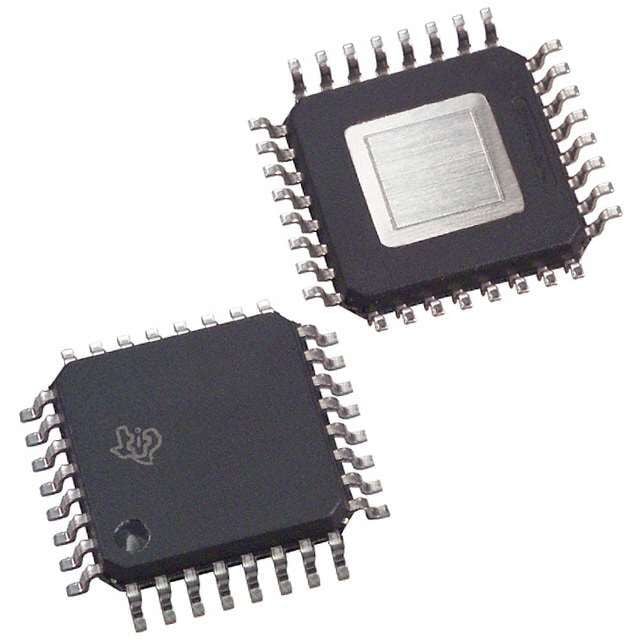

Product Images
