Mono Class-D audio power amplifier, 20W max output power, 12.8W output power, 4 Ohm load impedance. Features I2S input, 23.6dB voltage gain, and 73dB PSRR. Operates from 8V to 18V supply voltage with a typical 15V operating voltage. Surface mount HTSSOP package, -40°C to 85°C operating temperature range. RoHS compliant.
PackageHTSSOP
Current15mA
MountingSurface Mount
Power12.8W
Quick Jump:
Technical Specifications
Texas Instruments TPA3200D1DCP technical specifications.
General
Package/Case
HTSSOP
Gain
23.6dB
Lead Free
Contains Lead
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
20W
Max Power Dissipation
4.89W
Max Supply Current
15mA
Max Supply Voltage
18V
Min Supply Voltage
8V
Mount
Surface Mount
Number of Channels
1
Operating Supply Voltage
15V
Output Power
12.8W
Package Quantity
40
Packaging
Rail/Tube
Power Dissipation
4.89W
Power Supply Rejection Ratio (PSRR)
73dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPA3200D1
Supply Current
15mA
Supply Type
Single
Voltage Gain
23.6dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3200D1DCP Datasheet
Download the complete datasheet for Texas Instruments TPA3200D1DCP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

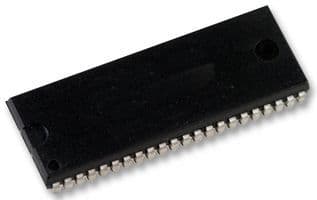

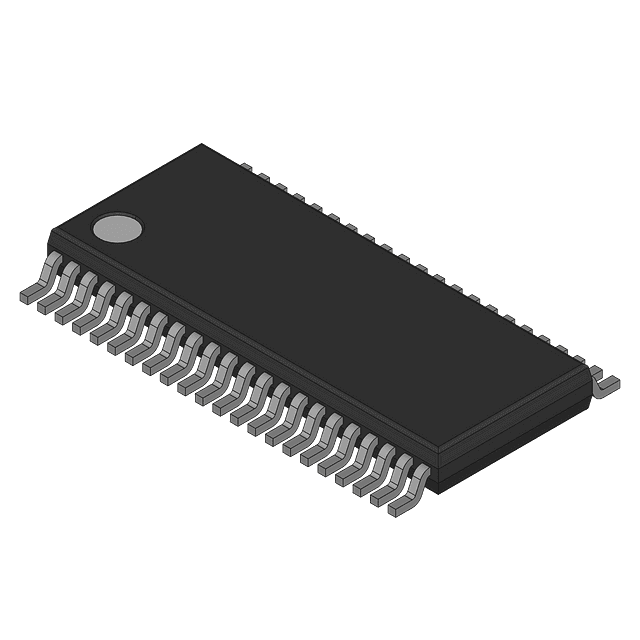

Product Images
