2-W stereo Class-AB audio amplifier with 21.6dB voltage gain, capable of delivering 2.3W output power. Features a 3.3-V LDO, active low enable, and a wide supply voltage range of 4.5V to 5.5V. Operates across a temperature range of -40°C to 85°C. Surface mountable in a VQFN EP package, this RoHS compliant component offers 100dB PSRR and a low supply current of 1mA.
PackageVQFN EP
Current1mA
MountingSurface Mount
Power2.3W
Quick Jump:
Technical Specifications
Texas Instruments TPA6043A4RHBR technical specifications.
General
| Package/Case | VQFN EP |
| Dual Supply Voltage | 5V |
| Gain | 21.6dB |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 2.3W |
| Max Power Dissipation | 5.06W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Output Power | 2.3W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DirectPath™ |
| Supply Current | 1mA |
| Supply Type | Quad |
| Voltage Gain | 21.6dB |
| Weight | 0.002547oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA6043A4RHBR Datasheet
Download the complete datasheet for Texas Instruments TPA6043A4RHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

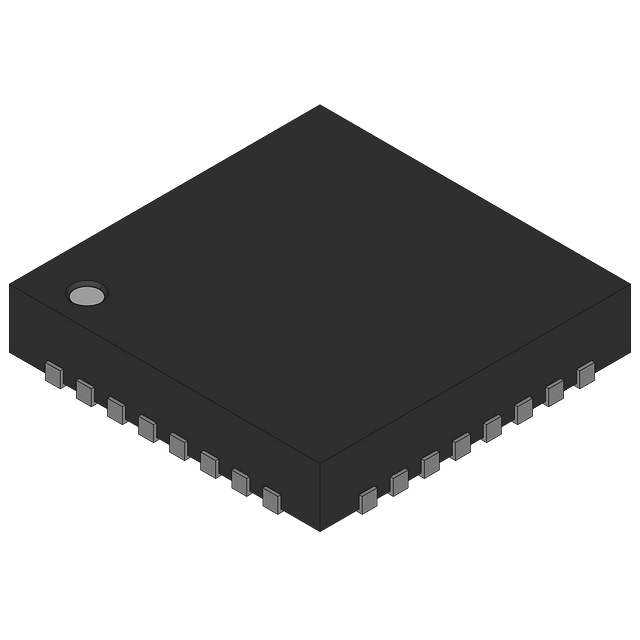

Product Images
