Texas Instruments
TPA6136A2YFFR
25-mW DirectPath™ Stereo Headphone Amplifier with Pop Suppression (WCSP) 16-DSBGA -40 to 85
Current2.9mA
MountingSurface Mount
Power25mW
Quick Jump:
Technical Specifications
Texas Instruments TPA6136A2YFFR technical specifications.
General
Gain
6.02dB
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
25mW
Max Power Dissipation
1.25W
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Channels
2
Output Power
25mW
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1.25W
Power Supply Rejection Ratio (PSRR)
100dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
DirectPath™
Supply Current
2.9mA
Supply Type
Single
Voltage Gain
6.02dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA6136A2YFFR Datasheet
Download the complete datasheet for Texas Instruments TPA6136A2YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

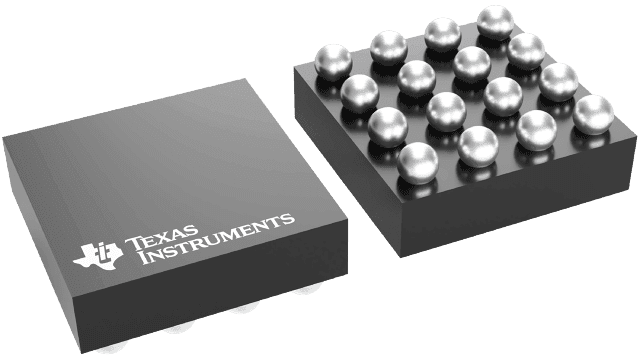

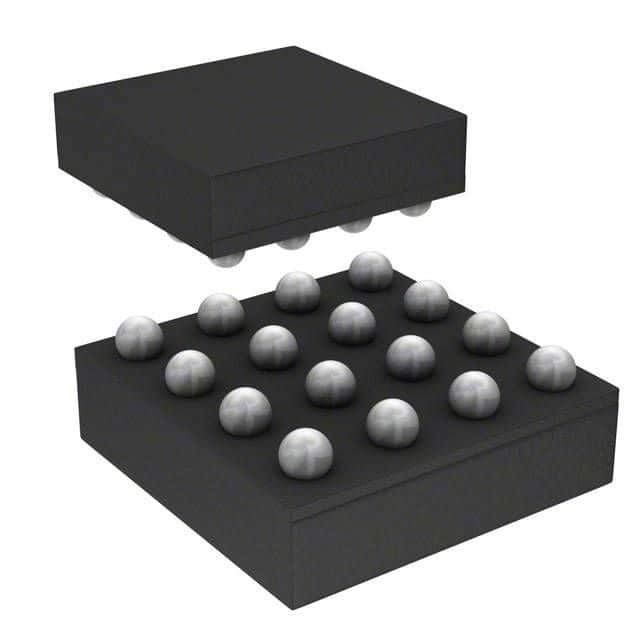

Product Images
