25mW stereo audio amplifier, featuring DirectPath™ technology, operates from a 3V to 3.6V supply with a typical 3.3V operating voltage. Delivering 25mW output power into a 32Ω load, this integrated circuit boasts an 8MHz gain bandwidth product and a 25mA supply current. The amplifier is housed in a 14-TSSOP package with dimensions of 5.1mm length, 4.5mm width, and 1.05mm height, suitable for operation between -40°C and 85°C. It offers a high 80dB Power Supply Rejection Ratio (PSRR) and is RoHS compliant.
PackageTSSOP
Current25mA
Power25mW
Quick Jump:
Technical Specifications
Texas Instruments TPA6139A2PW technical specifications.
General
| Package/Case | TSSOP |
| Gain Bandwidth Product | 8MHz |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Load Impedance | 32R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 25mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Output Power | 25mW |
| Output Type | Adjustable |
| Package Quantity | 90 |
| Packaging | Bulk |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DirectPath™ |
| Supply Current | 25mA |
| Unity Gain Bandwidth Product | 8MHz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA6139A2PW Datasheet
Download the complete datasheet for Texas Instruments TPA6139A2PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

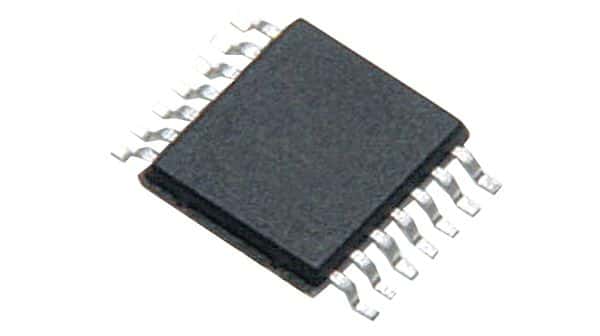

Product Images
