Texas Instruments
TPA6141A2YFFT
25-mW Class-G DirectPath™ Stereo Headphone Amplifier (TPA6141) 16-DSBGA -40 to 85
Current2mA
MountingSurface Mount
Power25mW
Quick Jump:
Technical Specifications
Texas Instruments TPA6141A2YFFT technical specifications.
General
| Lead Free | Lead Free |
| Load Impedance | 16R |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 32mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Power | 25mW |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.25W |
| Power Supply Rejection Ratio (PSRR) | 105dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DirectPath™ |
| Supply Current | 2mA |
| Voltage Gain | 8dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA6141A2YFFT Datasheet
Download the complete datasheet for Texas Instruments TPA6141A2YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

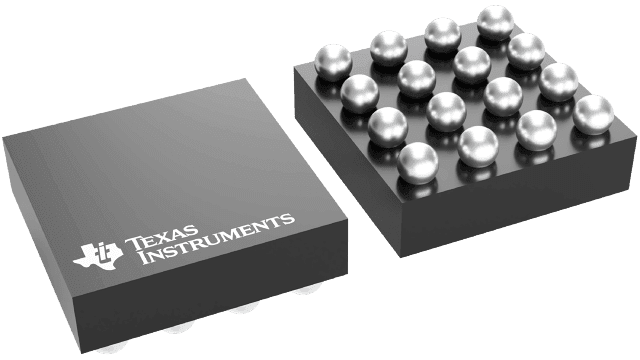

Product Images
